Battery Packs
Elephant Power’s battery packs are engineered for safety, durability, and versatility, offering a dependable energy solution for home, industrial, commercial, and even shipping applications.
With a long service life of up to 6000 cycles, these battery packs deliver lasting performance, thanks to high-quality raw materials and a built-in Battery Management System (BMS) for optimal safety and efficiency.
Simple to install and configurable in parallel or series, they provide flexible energy storage that scales to meet diverse needs. Designed for longevity and ease of use, Elephant Power’s Battery Packs offer a resilient energy source you can rely on across various settings.
Models

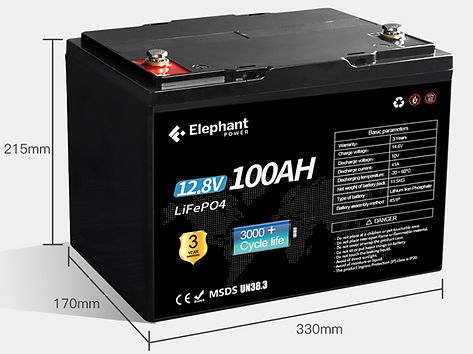

SVB-12100
The SVB12100 battery pack is a compact and dependable energy storage solution, designed with advanced technology for long-lasting performance. With a built-in Battery Management System (BMS) and support for series and parallel connections, it ensures safe, efficient, and scalable energy usage. Its lightweight design, large capacity, and high-quality construction make it ideal for applications like backup power, forklifts, and electric vehicles, offering reliability you can count on.
Voltage: 12.8V
Capacity: 100Ah
Weight: 12kg
Size: 330*170*215mm
Wall-Mounted
Introducing our sleek and efficient wall-mounted battery pack, designed to seamlessly integrate into your home or business. Offering reliable energy storage, it helps reduce electricity costs, provides backup power during outages, and ensures uninterrupted energy supply. Compact and stylish, it saves space while delivering high performance and long-lasting durability. Perfect for modern energy solutions.
Specifications | Model #1 | Model #2 | Model #3 |
|---|---|---|---|
Cycle Life | >6000 times, 80% DOD | >6000 times, 80% DOD | >6000 times, 80% DOD |
Design Life | 10+ Years (25 / 77°F) | 10+ Years (25 / 77°F) | 10+ Years (25 / 77°F) |
Mounting Options | Wall | Wall | Wall |
Altitude | <2000m | <2000m | <2000m |
Humidity | 5%-85% | 5%-85% | 5%-85% |
Shelf Temperature | 20-60°C | 20-60 °C | 20-60°C |
Working Temperature | 0-50°C | 0-50°C | 0-50°C |
Internal Impedance | ≤30mΩ | ≤30mΩ | ≤30mΩ |
Charge Method | CC/CV | CC/CV | CC/CV |
Communication Port | RS232, RS485, CAN | RS232, RS485, CAN | RS232, RS485, CAN |
Standard Charge / Discharge Current | 115A | 140A | 150A |
Max Charge / Discharge Current | 115A | 140A | 150A |
Max Continuous Charge / Discharge Current | 200A | 200A | 200A |
Charge Voltage | 58.4V | 58.4V | 58.4V |
Discharge Voltage | 43.2V | 43.2V | 43.2V |
Weight | 120kg | 135kg | 140kg |
Dimension | 270*440*660mm | 188.2*800*1200mm | 188.2*800*1200mm |
Energy | 11776Wh | 14336Wh | 16076.8Wh |
Nominal Capacity | 230Ah | 280Ah | 314Ah |
Nominal Voltage | 51.2V | 51.2V | 51.2V |
APB-9600
The APB 9600 Home Solar Battery System is a cutting-edge solution for efficient energy management. With its high-capacity battery, it stores solar energy to provide consistent power even when the sun isn't shining, reducing reliance on the grid. Designed for durability and seamless integration with solar panels, it maximizes clean energy usage while offering intelligent controls to monitor and manage energy consumption. Customizable settings ensure essential devices stay powered during outages, and time-of-use optimization helps lower electricity costs, making it a reliable and cost-effective energy solution.
Specifications | Details |
|---|---|
Design Life | 15 years |
Cycle Life | >6000 times, 80% DOD |
Communication Port | RS232/RS485/CAN |
Charge / Discharge Current | 100A (Max) / 150A (Peak @ 15s) |
Weight | 81.2 kg |
Dimensions | 592*482*237mm |
Usable Capacity | 9200 Wh |
Nominal Capacity | 9600 Wh |
Nominal Voltage | 48V / 51.2V |
APB-4800
The APB-4800 battery pack is a reliable and efficient energy storage solution designed for modern power needs. With its compact design and advanced battery technology, it provides consistent performance for both residential and commercial applications. Ideal for backup power or integrating with solar systems, the APB-4800 ensures dependable energy storage to keep your devices running smoothly, even during outages.
Specifications | Details |
|---|---|
Design Life | 15 years |
Cycle Life | >6000 times, 80% DOD |
Communication Port | RS232/RS485/CAN |
Charge / Discharge Current | 100A (Max) / 100A (Peak @ 15s) |
Weight | 48kg |
Dimensions | 482*420*178mm |
Usable Capacity | 4500 Wh |
Nominal Capacity | 4800 Wh |
Nominal Voltage | 48V / 51.2V |
APB-3600
The APB-3600 battery pack is a compact and efficient energy storage solution tailored for versatile power needs. Designed for durability and reliability, it offers seamless integration with solar systems or serves as a dependable backup during outages. Whether for home or business use, the APB-3600 ensures consistent energy delivery, keeping your essential devices powered when it matters most.
Specifications | Details |
|---|---|
Design Life | 15 years |
Cycle Life | >6000 times, 80% DOD |
Communication Port | RS232/RS485/CAN |
Charge / Discharge Current | 75A (Max) / 750A (Peak @ 15s) |
Weight | 32kg |
Dimensions | 482*420*150mm |
Usable Capacity | 3200 Wh |
Nominal Capacity | 3600 Wh |
Nominal Voltage | 48V / 51.2V |
SVB-24100
The SVB24100 battery pack is a high-performance energy solution built for versatility and durability. Featuring a built-in Battery Management System (BMS), it ensures safe and efficient operation with a longer lifespan. Its lightweight design, large capacity, and high-quality raw materials make it ideal for demanding applications such as forklifts, backup power, golf carts, and more. With support for series or parallel connections, the SVB24100 offers flexibility and scalability to meet a variety of energy needs.
Voltage: 24V
Capacity: 100Ah
Weight: 22kg
Size: 350*170*240mm
APB-12280
The APB-12280 battery pack is a robust and reliable energy storage solution designed for high-performance applications. With its large capacity and advanced technology, it delivers consistent power for a variety of uses, from backup energy to integration with renewable systems. Built for durability and efficiency, the APB-12280 ensures long-lasting performance and dependable energy when you need it most.
Specifications | Details |
|---|---|
Model Name | APB-12280 |
Net Weight | 22 kg |
Dimensions | 242*197*433 |
Working Temperature | 0-50℃ |
Discharge Cut-Off Voltage | 9.2V |
Charging Cut-Off Voltage | 14.6V |
Charge Method | CC/CV |
Standard Capacity | 280Ah |
Nominal Voltage | 12V |
Rechargeable | Yes |
SVB-12200
The SVB12200 battery pack combines reliability and versatility in a compact design. Featuring a built-in Battery Management System (BMS), it ensures safe and efficient performance with a long lifespan. Its lightweight build, high-quality materials, and large capacity make it ideal for a range of applications, including forklifts, backup power, and electric vehicles. Designed for flexibility, it supports both series and parallel connections, offering scalable energy solutions to meet diverse power needs.
